Custom Map Overlays in TG

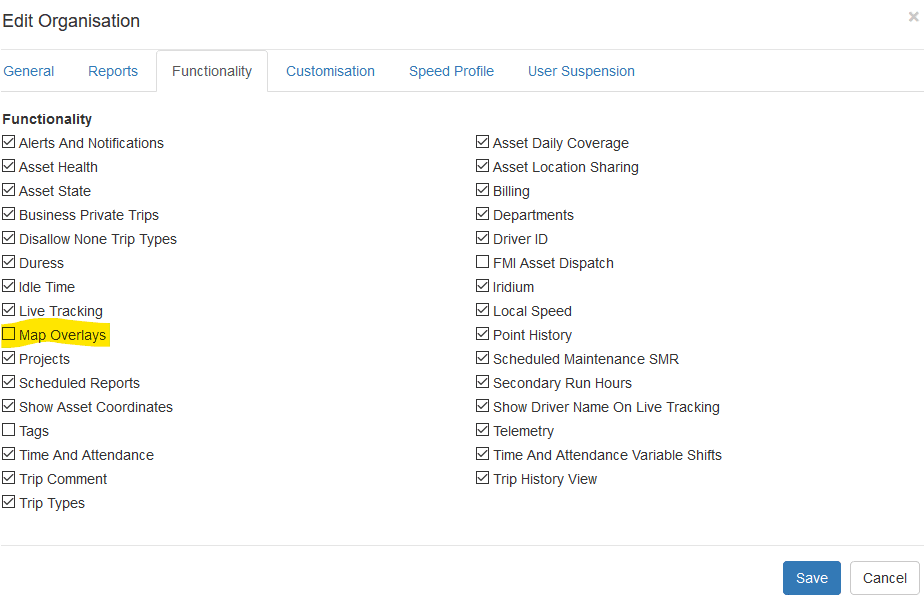

TG Online can support custom map overlays. Often users such as mine sites wish to be able to overlay aerial images, or more up to date maps onto a tracking platform. Aerial images make locating devices and seeing the actual position relative to site features simple. Often in newer areas, the Google Maps view will not update quickly enough for requirements so the option to overlay images is a key feature. In order to use this feature, the Map Overlays functionality must be enabled for your organisation.

Tiled Map Format

In order to set up map overlays in TG Online, you must first create your map files in Tiled Map Format, and host the tiles in a publicly accessible webserver.

To create the tiles you can use services such as Maptiler, QGIS or ArcGIS

Hosting

Host your files somewhere such as Amazon S3 Storage

Set Up

To set up a map overlay,

1. Go to Admin -> Map Overlays
   (the user account will need the Map Overlays permission – contact DM if you cannot access map overlays)
2. Click Create in the top left


3. These options are presented

• Name
• URL
• Extension
• Default Opacity
• Minimum Zoom
• Maximum Zoom
• North Boundary
• South Boundary
• East Boundary
• West Boundary
• Hidden by Default

Mouse over the tooltip near each option for more information.

Overlays are added to each organisation. If you need the same overlay on multiple organisations, you will need to create it multiple times.
